RNAV Approaches in X-Plane 12 – A Beginner Guide

Flying RNAV approaches in X-Plane 12 is one of the most rewarding ways to train instrument navigation without relying on traditional ground-based navigation like VORs or ILS. With the Cessna 172 GNS530/430 GPS, you have all the tools needed to fly realistic GPS-based procedures, both for departures (SID) and arrivals (STAR and RNAV approaches).

---

What is an RNAV Approach?

RNAV (Area Navigation) is a GPS-based instrument approach that allows aircraft to follow a defined lateral path using waypoints rather than relying on ground-based nav aids like VORs or NDBs.

It’s simple to load a RNAV approach into your GPS and then follow the directions to each waypoint. The RNAV chart will give you the required altitudes at each waypoint which will guide you to the threat hold of the airport runway.

It is used in conjunction with your ILS needles and in the latter aircraft when you select GPS as you navigation mode they will come to life and guide you to the runway.

🟩 Key Features:

• Uses GPS waypoints like IF, FAF, MAP
• Can be flown without VORs or ILS signals
• Provides both horizontal and vertical guidance (if WAAS-enabled)
• Often labelled as RNAV (GPS) in the procedure charts

---

Where to Find RNAV Procedures for Your Airport

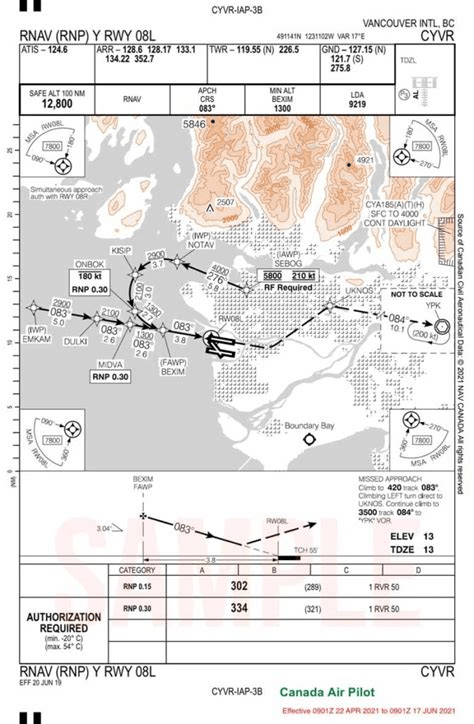

To fly an RNAV approach or departure, you’ll need the charts for that procedure.

🔎 Recommended Free Sources:

• FAA Chart Supplement (US airports)
• SkyVector
• ChartFox (Free VATSIM login required)
• Navigraph (Subscription for global coverage)

📝 Example:
Let’s use KAPC (Napa County Airport, California) and fly the RNAV (GPS) RWY 36L approach.

---

Understanding NAV Beacons, Fixes & Waypoints

RNAV does not require ground beacons, but you’ll see many named fixes on charts. These include:

• IF (Initial Fix) – Start of the approach (e.g., AMESY)
• FAF (Final Approach Fix) – Where you descend (e.g., CEXUN)
• MAP (Missed Approach Point) – Decision point for landing or going around
• Missed Approach Holding Fix – The point you return to if you go missed

🛰️ Example Fix Names: AMESY, CEXUN, JABKU

---

How to Fly an RNAV Approach in X-Plane 12 (Cessna 172 – GNS530/430 )

Let’s walk through a complete RNAV GPS approach from setup to landing using the Cessna 172 with the GNS530/430 avionics suite in X-Plane 12.

---

Step 1: Load the RNAV Approach in the GNS530 GPS

1. Turn on Avionics – Battery, Avionics 1 & 2 switches
2. Press the PROC button (Procedure)
3. Select “Select Approach”
4. Choose your airport (e.g., KAPC)
5. Select RNAV (GPS) RWY 36L
6. Choose a transition (e.g., AMESY)
7. Activate or Load the approach

🟡 Use “Activate” if already in the air approaching the fix. Use “Load” if you want to fly to the fix first.

---

Step 2: Fly Direct to the Initial Fix (IF)

1. Press the Direct-To (D) key on the GNS530
2. Enter the first waypoint (e.g., AMESY)
3. Activate it – this gives you a magenta GPS course line
4. Follow it using the NAV mode on autopilot or fly manually using the CDI needle

✅ Set your NAV/GPS switch to GPS
✅ Set the Autopilot to NAV mode

---

Step 3: Begin the Descent at the FAF.

As you approach the FAF (Final Approach Fix):

1. Set approach flaps
2. Reduce power to ~1700–1800 RPM
3. Start descending to the MDA (Minimum Descent Altitude) or DA (Decision Altitude)

🟡 In X-Plane 12, vertical guidance for RNAV will show if your GPS supports WAAS. If not, fly step-down altitudes manually.

📏 Check the chart for:

• FAF altitude (e.g., 2000 ft)
• MDA or DA (e.g., 540 ft)

---

Step 4: Reach the MAP and Land.

At the MAP (Missed Approach Point):

• If you see the runway and are stable: land
• If not: Go Around

To go missed:

1. Apply full power
2. Pitch up to climb
3. Follow the missed approach procedure (often defined on the chart)

---

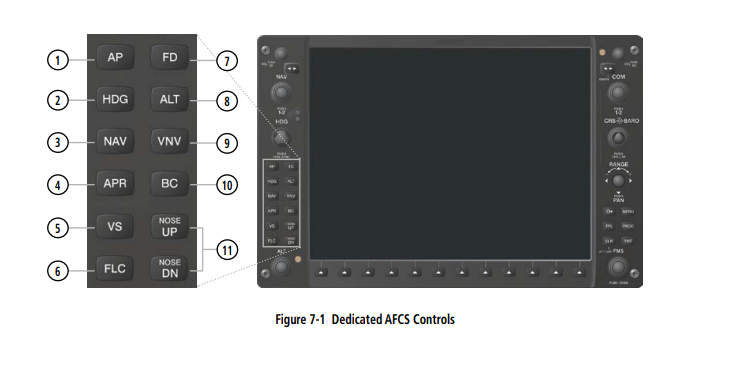

RNAV Approach Using the G1000 in X-Plane 12 (Cessna 172SP G1000)

For sim pilots flying the G1000-equipped Cessna 172 in X-Plane 12, the RNAV procedure is equally intuitive once you’re familiar with the interface. The Garmin G1000 provides a powerful tool for RNAV with its multi-function display (MFD) and flight plan page, supporting both departure (SID) and approach (RNAV) procedures.

This part of the RNAV approach X-Plane 12 guide shows how to fly a GPS-based approach step-by-step using the G1000 glass cockpit.

---

🧭 Key Differences from the GNS530

Feature	GNS530/430	G1000
Screen Type	Small text/nav interface	Large PFD + MFD glass panels
Flight Plan Entry	Turn knobs to select fixes	Full keypad via FMS soft keys
Situational Awareness	Limited	Map overlay, terrain & profile
RNAV Support	Yes	Full LPV support (if WAAS-enabled)

---

Step-by-Step RNAV Approach Setup – G1000

Let’s again use KAPC – Napa County Airport, flying the RNAV (GPS) RWY 36L approach.

---

🖥️ Step 1: Load the RNAV Approach via MFD

1. Power on avionics (Battery + Avionics switches)
2. On the MFD, press the FPL softkey
3. Press the PROC softkey (bottom right)
4. Select “Select Approach”
5. Choose RNAV (GPS) RWY 36L
6. Choose the Transition fix (e.g., AMESY)
7. Press ENT to load
8. You may select “Activate” if airborne and approaching, or “Load” if still preparing

---

Step 2: Set CDI to GPS Mode

Make sure your Primary Flight Display (PFD) is showing GPS as the active navigation source:

• Press the CDI softkey until it shows GPS (green label)
• You’ll now follow the magenta line on the HSI

✅ If NAV1 is active instead of GPS, your CDI will be using VLOC (VOR). For RNAV, GPS must be the selected source.

---

Step 3: Navigate to the Initial Fix (IF)

• Use Direct-To if needed:
  • Press Direct-To (D) on MFD
  • Type in AMESY or other IF
  • Press ENT and activate

Once enroute, the aircraft will follow the RNAV leg from fix to fix using the G1000’s GPS flight plan.

---

Step 4: Begin Descent at the FAF

Approaching the Final Approach Fix (FAF) (e.g., CEXUN):

• Use ALT SEL knob to dial in MDA or next step-down fix altitude
• Monitor the vertical path diamond (if available, depends on WAAS capability)
• Reduce power to ~1700–1800 RPM and extend flaps as appropriate

🟡 RNAV approaches can offer LPV guidance (like an ILS) if the approach supports it in X-Plane 12. If not, fly altitudes manually based on the chart.

---

Step 5: At the MAP – Decide

Once over the Missed Approach Point (MAP):

• If runway is in sight and safe: Land
• If not: Execute missed approach

Missed approach instructions (heading and altitude) are automatically displayed on the MFD if included in the RNAV procedure.

---

Bonus: Flying an RNAV SID in the G1000

RNAV Departure Procedure in G1000:

1. Press PROC
2. Select Departure
3. Choose departure airport (e.g., KAPC)
4. Select Runway and SID transition
5. Load & Activate
6. After takeoff, follow the magenta line as the aircraft auto-sequences through the departure waypoints

✈️ Use HDG mode after takeoff if needed to intercept the GPS course before engaging NAV.

---

G1000 vs GNS530 – Which Should You Use?

Avionics Type	Best For	RNAV Support	Learning Curve
GNS530/430	Legacy VFR/IFR	Good	Easier for new users
G1000	Modern IFR Practice	Excellent (LPV, WAAS)	Steeper, but worth it

---

Final RNAV Flight Tips for G1000 Pilots in X-Plane 12

• Zoom in on the MFD map to verify waypoints and altitudes
• Use Profile view (PFD/MFD softkey) to visualize descents
• Don’t forget to switch CDI between GPS and VLOC depending on your flight segment
• Use Flight Plan page to review and edit the sequence of fixes
• Practice in VFR weather first before adding IMC and winds

---

Wrap-Up: Practice Makes Proficient.

The Cessna 172 G1000 in X-Plane 12 is a fantastic platform to master RNAV procedures using modern avionics. Whether departing via an RNAV SID or flying a full GPS approach to minimums, learning the G1000 system is a valuable step for any sim pilot training for IFR.

📌 Combine this with chart reading and proper descent planning, and you’ll be RNAV-ready in no time.

---

Bonus: RNAV Departure in X-Plane 12

RNAV departures are called SIDs (Standard Instrument Departures)

To Fly an RNAV Departure:

1. Press PROC
2. Choose Select Departure
3. Pick the departure runway and transition
4. Load and Activate

🟡 After takeoff, the GNS530 will guide you via magenta line through all waypoints on the SID.

---

Pro Tips for Practicing RNAV in X-Plane 12

• Use real airport charts – Don’t guess waypoints
• Practice with weather turned off first
• Use X-Plane map view (M) to check waypoint positions
• Pause and review GPS sequences mid-flight
• Consider flying with ATC or VATSIM to simulate full IFR operations

---

Summary: RNAV Approach Workflow

Phase	What You Do
Planning	Choose airport + approach chart
GPS Setup	Load & Activate RNAV approach
Navigation	Fly to Initial Fix using GPS NAV
Descent	Descend from FAF at correct altitudes
MAP Decision	Land or Go Around

---

Final Thoughts

Flying RNAV approaches in X-Plane 12 is a crucial step toward mastering instrument flying and using modern GPS avionics. The Cessna 172 GNS530 provides a perfect platform to train these procedures and build a solid sim pilot foundation.

✈️ Keep practicing with different airports, transitions, and weather conditions—and you’ll soon be flying realistic IFR approaches confidently!

---
